YC-60 Hydraulic pile driving hammer

Yongan hydraulic impact hammer has 14 models from YC-3 to YC-80, impact energy vary from 24 KNm to 1360 KNm. It is widely applicable for most types of piling and foundation works. Various pipe material, size and shape such as concrete pipe, steel sheet pile, H beam, casing pile and shapes like round, etc. Hydraulic impact hammer can be used for fixed leader or crane suspended, the mounting type can be customized according to customer’s base machine. Our machine can also be used to extract piles or modified with adoptable accessories to do rapid impacting work.

YC-60 Hydraulic pile driving impact hammers applicable in onshore and offshore pile driving conditions, and also suitable for pile driving under water (above 5m) condition.

Technical Data

YC-60 Hydraulic pile driving hammer

Hammer YC-60
 Impact energy(KNm) 1020
 Working stroke(mm) 1700
 Impact frequency(bpm) 20/55
Ram Weight(Kg) 60000
 Lifting methord Double hydraulic cylinder lifting
 Length (mm) 9750
 Width (mm) 1782
 Height (mm) 1962
Weight(kg) 77000
Pile cap
 L*W*H (mm) As custom design
Weight(kg)
Power pack 1500P
 Engine power(P) 1500
 Engine model CAT C18*2
 System pressure(Mpa) 28
Work flow(L) 1600
The volume of the liquid oil (L) 4600
 Fuel tank capacity(L) 1000
 L*W*H (mm) 5000*2900*2500
Weight(kg) 19000

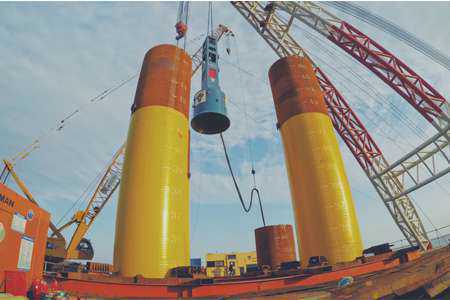

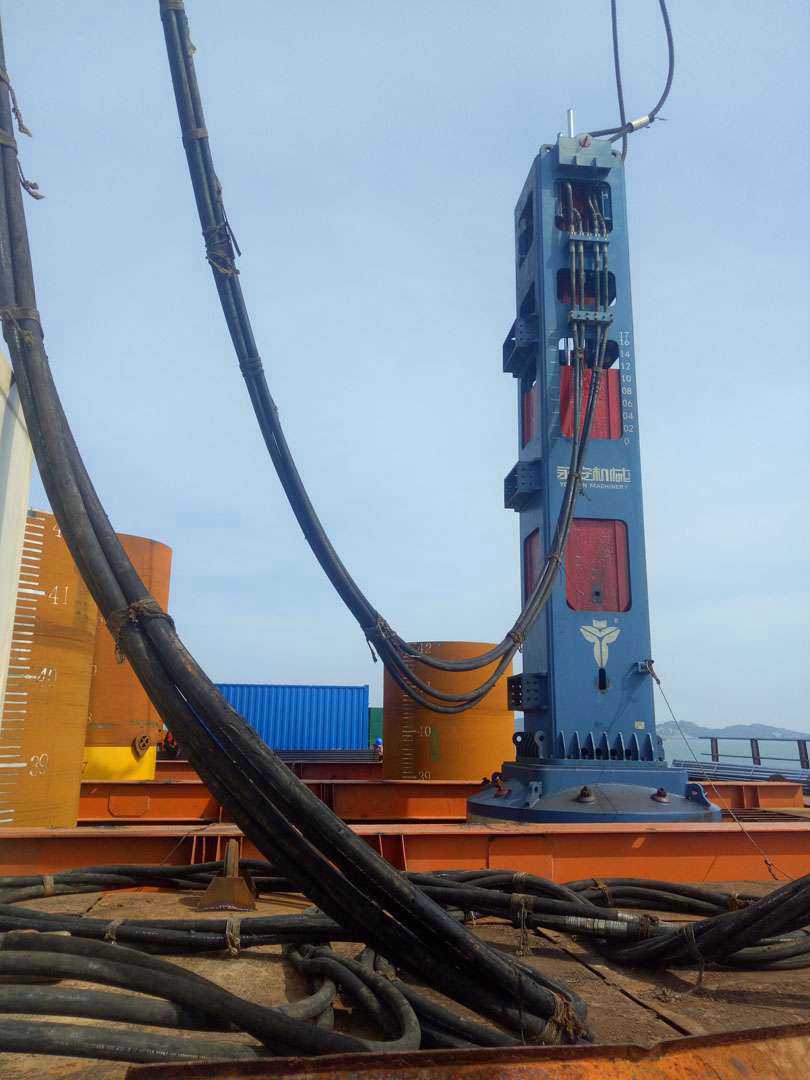

Projects photos
