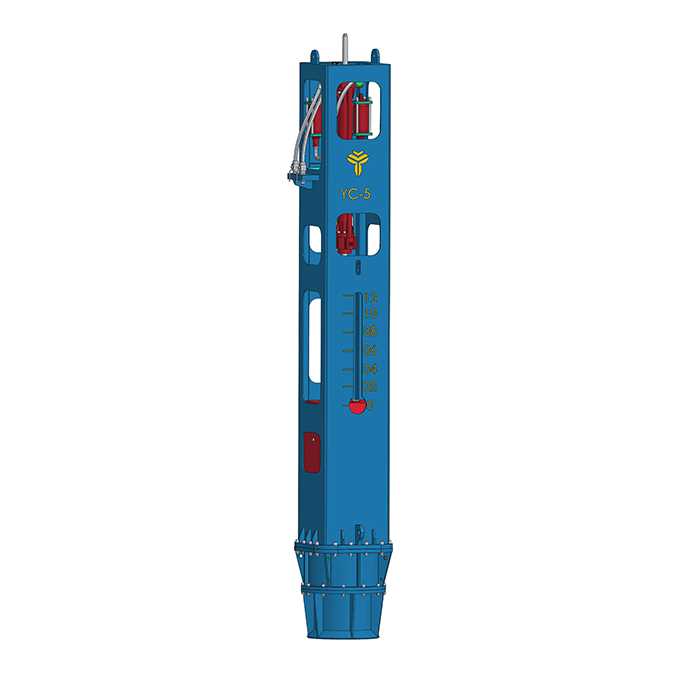

YC-5 Hydraulic impact pile driver

Yongan hydraulic impact hammer has 14 models from YC-3 to YC-80, impact energy vary from 24 KNm to 1360 KNm. It is widely applicable for most types of piling and foundation works. Various pipe material, size and shape such as concrete pipe, steel sheet pile, H beam, casing pile and shapes like round, etc. Hydraulic impact hammer can be used for fixed leader or crane suspended, the mounting type can be customized according to customer’s base machine. Our machine can also be used to extract piles or modified with adoptable accessories to do rapid impacting work.

Hydraulic impact pile driver YC-5, with CE approved, is a popular pile driver in construction of prefabricating casing pile foundation, large-scale sea-crossing concrete pile bridge and ferry pier, applicable in onshore and offshore pile driving conditions, and also suitable for pile driving under water (above 5m) condition.

Technical Data

YC-5 Hydraulic impact pile driver

Hammer YC-5
 Impact energy (KNm) 60
 Working stroke (mm) 1200
 Impact frequency (bpm) 40/100
Ram Weight  (Kg) 5000
 Lifting methord  Single hydraulic cylinder lifting
 Length (mm) 5150
 Width (mm) 900
 Height (mm) 1060
Weight(kg) 8500
Pile cap
 L*W*H (mm) 895*895*745
Weight(kg) 1100
Power pack 180P
 Engine power (P) 180
 Engine model Cummins C180
 System pressure (Mpa) 24
Work flow (L) 200
The volume of the liquid oil (L) 800
 Fuel tank capacity (L) 400
 L*W*H (mm) 2800*1450*1950
Weight(kg) 3500
