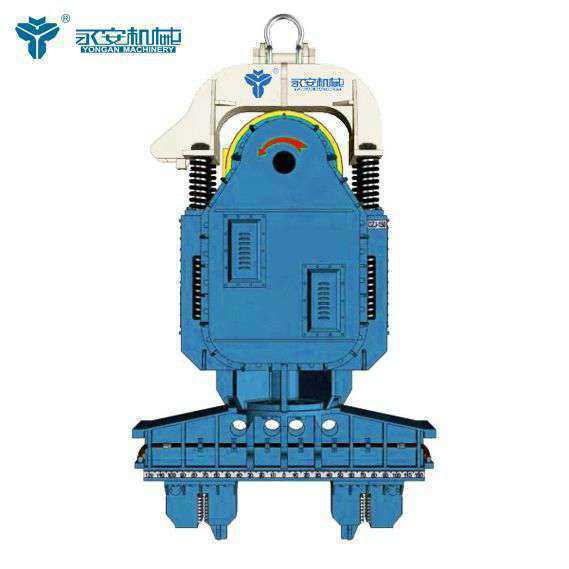

DZJ-200 Electric vibro hammer

Yongan has more than 30 years experience on electric vibratory hammer, and make many improvement. It’s equipped with spare parts of well-known brands, such  as FAG bearing of 3 layers combination, hydraulic oil pump of Italian brand,electric components of Siemens, Schneider, etc.  It has been used in many big projects both at home and abroad, suitable to drive and extract different kinds of piles. For example, precast concrete pile, cast-in-place concrete pile,  concrete expanded bore pile, lime pile, stone column. Beside, it’s widely used in cofferdam,  trestle work, offshore working platform, and also wind mill single pile or group pile. Yongan electric vibro hammer includes normal frequency series and adjustable frequency series. Adjustable frequency series can solve the problem of load start, and lower the requirement of the power generator. It could adjust frequency according to different soil layer frequency, saving time and cost.

DZJ200 Electric hammer  has recently become an ideal pile driver for foundation works and ground treatments, for example, residency, workshops, metros, motorways, docks, airports and power stations.

Technical Data

DZJ-200 Electric vibro hammer

Moter power (Kw) : 200
Eccentric Moment (Nm) : 1604
Driving force (Kn) : 0~1600
Speed (r/min) : 0~960
Amplitude (Mm) : 0~11.7
Maximum Line Pull (Kn) : 588
Length (m) : 2.2
Width (m) : 1.7
Height (m) : 3.5
Weight (kg): 11500

Standard components

Projects photos
